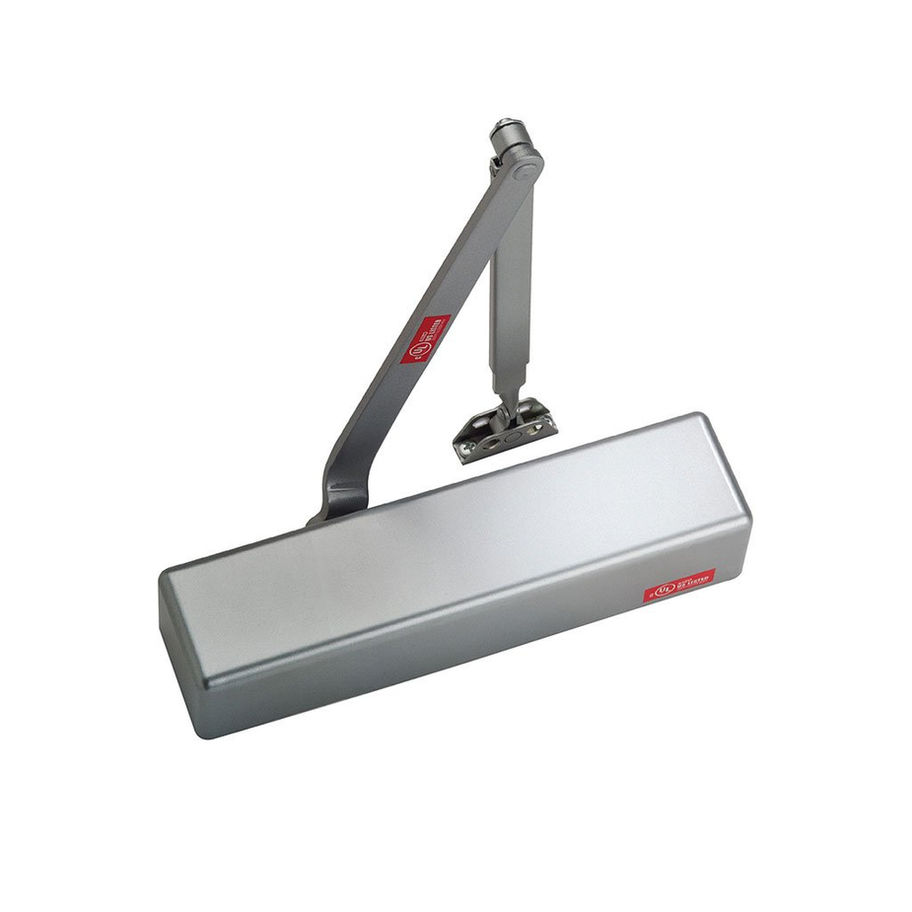

PDQ Surface Closers 5100

Non-handed
OPERATION:

Rack and pinion design
BODY:

High strength aluminum alloy
ARM:

Flat style arm assembly
ARM OPTIONS:
Hold open Arm
DS/DSHO heavy duty parallel stop arm
Track/hold Open Arm
Spring cushion stop for DS/DSHO
EDA (Extra Duty PA Arm).
See ordering guide.


PISTON:
Hardened steel, 1-1/2” Dia


ADJUSTMENT:
Adjustable controlled closing
Separate hydraulic back-check standard
Separate sweep, latch, and back-check intensity valves
Optional adjustable delayed action


SIZE:
Adjustable 1 through 6


MOUNTING:
Tri-Packed for regular, top jamb and parallel arm installations
Fasteners furnished for wood or metal doors and frames
Self-drilling, self-tapping screws available


COVER:
Full plastic cover standard (non-handed), optional full metal cover
FINISHES:
689 Aluminum, 695 Duro Bronze, 696 Gold, 605 Polished Brass, 626 – Satin Chrome


CERTIFICATION:
UL and ULC listed
UL 10C listed
Certified to ANSI/BHMA A156.4-2006 Grade 1
Meets requirements of the Buy American Act


WARRANTY:
Twenty-five (25) year limited warranty

Grade: Grade 1

Function: 626

Manufacturer: PDQ

SKU: 5100

Product Description: closer,full cover,regular arm,SNB
